| Dimensions |
 |

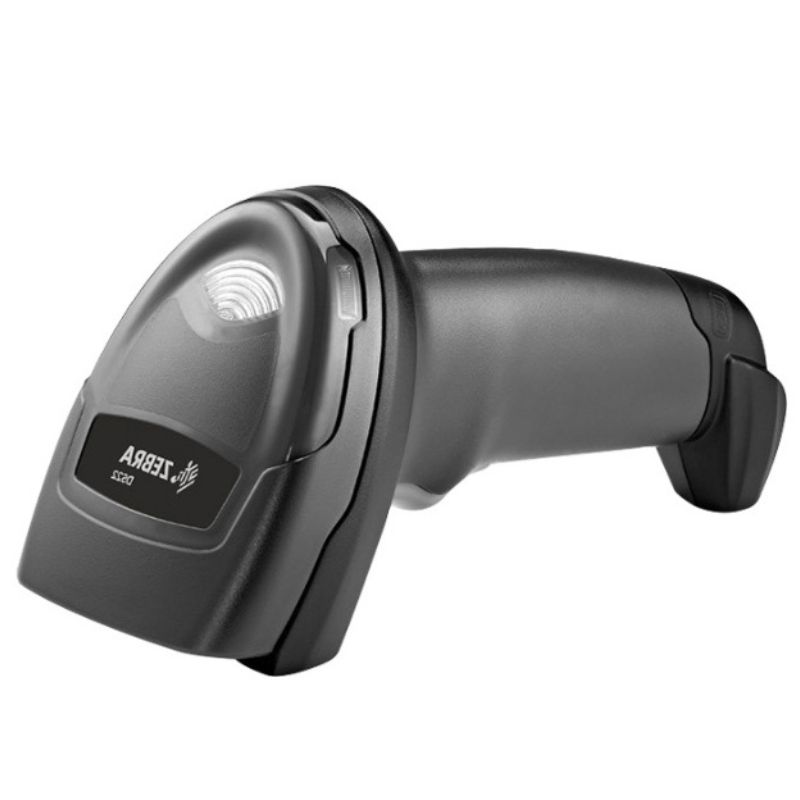

| Corded DS2208 |
- 6.5 in. H x 2.6 in. W x 3.9 in. D
- 16.5 cm. H x 6.6 cm. W x 9.9 cm. D
|
| Cordless DS2278 |
- 6.9 in. H x 2.6 in. W x 3.9 in. D
- 17.5 cm. H x 6.6 cm. W x 9.9 cm. D
|

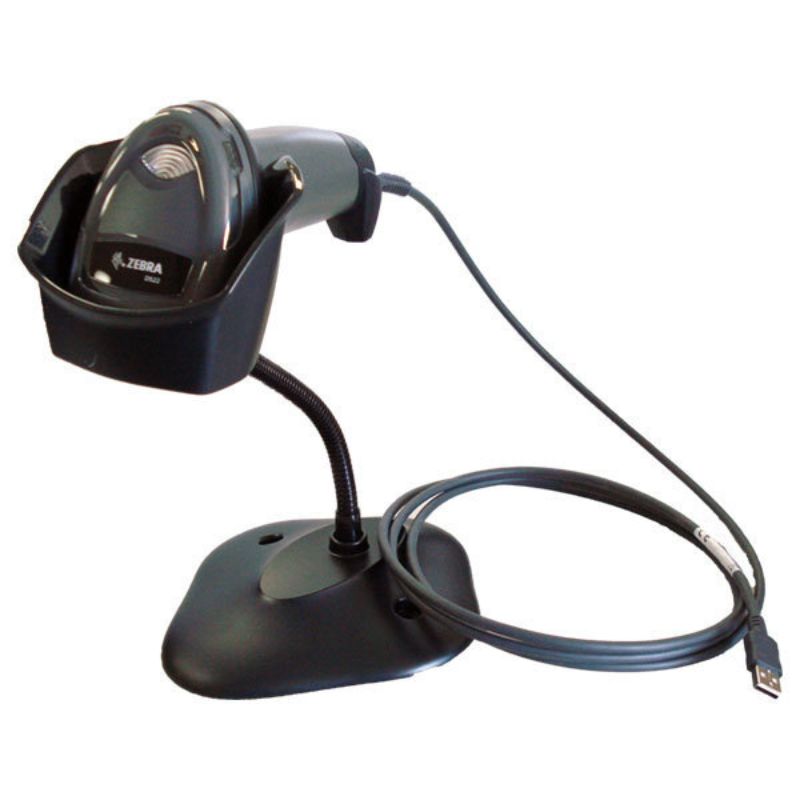

| Presentation Cradle |
- 2.8 in. H x 3.7 in. W x 4.8 in. D
- 7.1 cm. H x 9.4 cm. W x 12.2 cm. D
|
| Weight |
- Corded DS2208: 5.7 oz. / 161.6 g
- Cordless DS2278: TBD
- Presentation Cradle: TBD
|
| Input Voltage Range |
- DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host
- Powered; 4.5 to 5.5 VDC External Power Supply
|
| Current |
- Corded DS2208 Operating Current at Nominal
- Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and
- Illumination on Acquiring Image)
- Corded DS2208 Standby Current (idle) at Nominal
- Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)
- Presentation Cradle and Micro USB Cable: 500 mA
- (typical) Standard USB; 1100 mA (typical) BC 1.2 USB
|
| Color |
Nova White, Twilight Black |
| Supported Host Interfaces |
- USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over
- RS485
|
| Keyboard Support |
Supports over 90 international keyboards |
| User Indicators |
- Direct Decode Indicator; good decode LEDs; Rear view
- LEDs; beeper (adjustable tone and volume)
|
| PERFORMANCE CHARACTERISTICS |
 |
| Motion Tolerance (Handheld) |
Up to 5 in./13 cm. per second for 13 mil UPC |
| Swipe Speed (Hands-Free) |
Up to 30.0 in./76.2 cm. per second for 13 mil UPC |
| Light Source |
Aiming Pattern: Linear 624nm Amber LED |
| Illumination |
645nm Super-Red LEDs |
| Imager Field of View |
32.8° H x 24.8° V Nominal |
| Image Sensor |
640 x 480 pixels |
| Minimum Print Contrast |
25% minimum reflective difference |
| Skew/Pitch/Roll Tolerance |
+/- 65°; +/- 65°; 0-360° |
| Minimum Element Resolution |
- Code 39 – 4.0 mil; Code 128 – 4.0 mil;
- Data Matrix – 6.0 mil; QR Code – 6.7 mil
|
| USER ENVIRONMENT |
 |
- Operating Temperature
- Presentation Cradle
|
32.0° to 104.0° F/0.0° to 40.0° C |
| Storage Temperature |
-40.0° to 158.0° F/-40.0° to 70.0° C |
| Humidity |
5% to 95% RH, non-condensing |
| Drop Specification |
- Designed to withstand multiple drops at
- 5.0 ft./1.5 m to concrete
|
| Tumble Specification |
- Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler1
|
| Environmental Sealing |
IP42 |
| Electrostatic Discharge (ESD) |
DS2208/DS2278 and Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect |
| Ambient Light Immunity |
to 10,000 Foot Candles/0 to 107,600 Lux |
| RADIO SPECIFICATIONS |
 |
| Bluetooth Radio |
- Standard Bluetooth Version 4.0 with BLE: Class 2 33 ft. (10.0m), Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps
|
| DECODE CAPABILITIES3 |
 |
| 1D |
Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D |
PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes |
