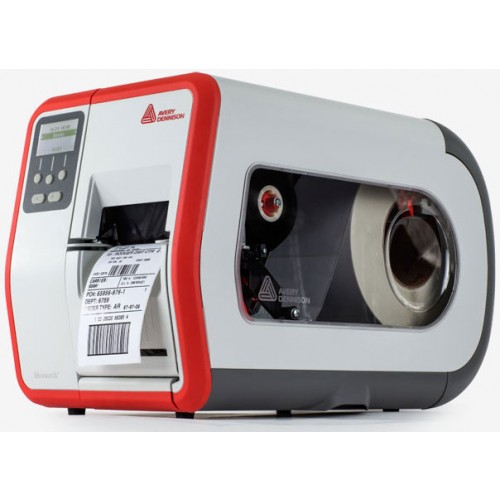

Avery-Dennison Tabletop Printer 1 (ADTP1) Barcode Label Printer

Description

The Avery Dennison Tabletop Printer 1 (ADTP1) was designed to be the fastest, most productive RFID printer/encoder in its class. Our breakthrough technology enables you to not only accelerate your performance, but also work more efficiently and intelligently. The ADTP1 was developed to be a dynamic and sleek tabletop to speed your barcode and RFID label and tag printing, encoding, verifying, cutting and stacking

PRODUCT DESCRIPTION

STANDARD FEATURES DIMENSIONS
Height: 13.8” (351mm)
Width: 11.5” (292mm)|
Depth: 21.5” (546mm)

WEIGHT
32 lbs (14.5kg)

SHIPPING WEIGHT
37 lbs (16.8kg)

PRINTING METHOD
Thermal Direct or Thermal Transfer BARCODES
One-dimensional—UPCA +2/+5, UPCE +2/+5, EAN8 +2/+5, EAN13
+2/+5, EAN128 Interleaved 2 of 5,Extended Code 39, Codabar
(NW7), Code 128, Code 16K, Code 93, MSI, Postnet, Intelligent Mail,
GS1 Databar
Two-dimensional—PDF417, MaxiCode, Data Matrix (ECC-200),
Quick Response (QR) Code, Aztec

STANDARD FONTS
Bitmap—Standard, Reduced, Bold, OCRA-like, CG Triumvirate, and CG Triumvirate Bold TrueType®—EFF Swiss Bold, Supports downloaded double-byte TrueType and bitmap fonts, allowing for international character sets

FONT MAGNIFICATION
1x to 7x
4 to 250 pt. for scalable/TrueType™ fonts

MEDIA SENSING METHOD
Edge: Die Cut, Black Mark, Aperture, Attacher Hole
Center: Die Cut, Black Mark, Attacher Hole

KEYPAD/DISPLAY
Five-button keypad control LCD Graphical Dot Matrix
(128W x 64H dots). 2.54” (64.5mm) Wide x 1.46” (37.0 mm) High

PRINTER CONTROL LANGUAGE(S) MPCL, MLI
PRINTER WARRANTY
One (1) year parts and labor. Full written warranty statement available on request.

PRINT HEAD WARRANTY
One (1) million inches or six (6) months, whichever occurs first.

SUPPLIES
Avery Dennison supplies are recommended.

SUPPLY TYPES
Tags and adhesive labels (paper or synthetic) in roll or fanfold format,
performated or continuous supply

SUPPLY SIZES
Width: 0.75–4.25” (19.1 to 108.0 mm)
Length: 0.32”–17.5“(8mm to 445mm)
Max Roll Diameter: 9.375” OD (238 mm) on 3” Core (76mm)
or 4” Core (102mm)

TYPICAL SUPPLY ROLL LENGTH
7,874” (200m) with standard media
11,811” (300m) with EcoCapacity+

SUPPLY THICKNESS
5.5–13.5 mils (0.14-0.33mm)

MAXIMUM PRINT AREA
4.0” x 16.0” (102 mm x 406 mm) with the 203 dpi print head
4.0” x 13.0” (102 mm x 330 mm) with the 300 dpi print head
Larger images (up to 16 feet) can be printed using continuous
supply and reallocating memory

RIBBON LENGTH
23,622” (600m)
Core: 1” (25.4mm) plastic

RFID ENCODER
Optional, EPCglobal UHF Class 1 Gen 2 / ISO 18000-63 (formerly
18000-6C). Supports worldwide UHF RFID frequency ranges.

RFID VERIFIER
Optional, integrated post-encode-and-print reader module. Validates
actual encoded data against requested data.

ENVIRONMENTAL RANGES OPERATING TEMPERATURE
Thermal Direct 40° to 104° F (4° C to 40° C)
Thermal Transfer 40° to 95° F (4° C to 35° C)
STORAGE
15° to 120° F (-9° C to 49° C)

HUMIDITY/OPERATING AND STORAGE
5% to 90% non-condensing

PERFORMANCE POWER SOURCE
100–240 VAC with auto select 50/60 Hz
Optional 24 VDC (U.S. and Canada Only)

PRINT SPEED
2.5 ips (64 mm/sec)
4 ips (102 mm/sec)
6.0 ips (152 mm/sec)
8.0 ips (203 mm/sec)
10.0 ips (254 mm/sec)—only with 203 dpi print head
12.0 ips (305 mm/sec)—only with 203 dpi print head

COMMUNICATIONS STANDARD COMMUNICATION PORTS
USB 2.0 Device Port (1 port, B receptacle), USB 2.0 Host Port (2 ports, A receptacle), RS-232C Serial Port (DB-9F, DTE pin out, 115.2K baud max comm. speed)

WIRED NETWORKING
802.3u Ethernet, 10/100 Mbps, RJ-45 connector

WIRELESS NETWORKING
Optional 802.11 a/b/g/n dual band (2.4GHz & 5 GHz), WPA2, 802.11i compliant

OPTIONS & ACCESSORIES
• 300 dpi print head
• Peel mode with on demand sensor
• Peel mode with on demand sensor and internal liner take-up*
• ADK Script programming for special applications
• +24V DC-powered (Cart ready)*

OPTIONS

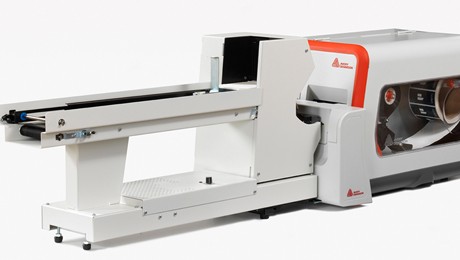

• 933™ High Speed Cutter*
• 928™ Stacker*
• 935™ Rewind
• 938™ Verifier*
• 939I™ Intelligent Keyboard
* Available on EF model only
